RPI Part #TUK197
OEM Part #PMVALUEKLAVE

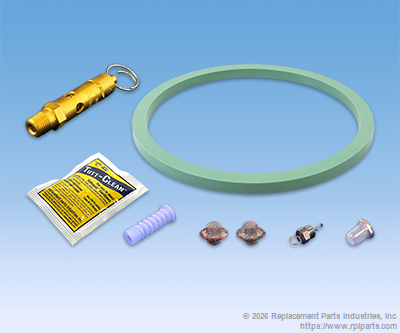

STERILIZER PM KIT (MAJOR 1730MKV)

• See Notes below for parts included in this Kit
• All parts also sold separately
• Note: Air Jet Valve included in this Kit is the RED Top (RPI Part #TUJ033)
• Annual PM is recommended. The Sterilizer PM Kit (Major 1730MKV) (RPI Part #TUK197) is recommended every two years. The Sterilizer PM Kit (Minor 1730MKV) (RPI Part #TUK122) is recommended between Major PM Kit services.
• Also available: Sterilizer PM Kit (Minor 1730MKV) (RPI Part #TUK122)

Model(s) This Part Fits: 1730EK (120VAC), 1730EK (230VAC), 1730MK (120VAC), 1730MK (230VAC), 1730MKV (120VAC), 1730MKV (230VAC)

Part Description Updated: 1/26/2025

Notes:

Includes:

• Door Gasket (RPI Part #TUG001)
• Fill/Vent Mesh Chamber Filter (RPI Part #MIF062)
• Door Bellows (RPI Part #TUB019)
• Rubber Boot for Door Switch (RPI Part #TUB072)
• Air Jet Valve (Red Top) (RPI Part #TUJ033)
• Safety Valve (40 PSI) (RPI Part #TUV065)
• (1 pkg) Tutt-Clean™ (RPI Part #TUC094)
• PM Checklist
• and PM Sticker
